Polyline Vector Layers

To draw polyline overlay on a chart using Leaflet JavaScript library, follow the way given below −

  • Step 1 − produce a Chart object by passing a element( String or object) and chart options( voluntary).
  • Step 2 − produce a Subcaste object by passing the URL of the asked pipe.
  • Step 3 − Add the subcaste object to the chart using the addLayer() system of the Map class.
  • Step 4 − produce a latlangs variable to hold the points to draw polyline, as shown below.

// Creating latlng object
var latlngs = [
   [17.385044, 78.486671],
   [16.506174, 80.648015],
   [17.000538, 81.804034],
   [17.686816, 83.218482]
];

Step 5 − Create a polyline using the L.polyline(). To draw the polyline, pass the locations as variable and an option to specify the color of the lines.

// Creating a poly line
var polyline = L.polyline(latlngs, {color: 'red'});

Step 6 − Add the polyline to the map using the addTo() method of the Polyline class.

// Adding to poly line to map
polyline.addTo(map);

Example Vector Layers

Following is the code which draws a polyline, covering the cities Hyderabad, Vijayawada, Rajamahendrawaram and, Vishakhapatnam (India).

DOCTYPE html>
<html>
   <head>
      <title>Leaflet Poly lines</title>
      <link rel = "stylesheet" href = "http://cdn.leafletjs.com/leaflet-0.7.3/leaflet.css"/>
      <script src = "http://cdn.leafletjs.com/leaflet-0.7.3/leaflet.js"></script>
   </head>

   <body>
      <div id = "map" style = "width:900px; height:580px"></div>
      <script>
         // Creating map options
         var mapOptions = {
            center: [16.506174, 80.648015],
            zoom: 7
         }
         // Creating a map object
         var map = new L.map('map', mapOptions);

         // Creating a Layer object
         var layer = new L.TileLayer('http://{s}.tile.openstreetmap.org/{z}/{x}/{y}.png');

         // Adding layer to the map
         map.addLayer(layer);

         // Creating latlng object
         var latlngs = [
            [17.385044, 78.486671],
            [16.506174, 80.648015],
            [17.000538, 81.804034],
            [17.686816, 83.218482]
         ];
         // Creating a poly line
         var polyline = L.polyline(latlngs, {color: 'red'});

         // Adding to poly line to map
         polyline.addTo(map);
      </script>
   </body>

</html>

It generates the following output

Polyline

Polygon

To draw a polygon overlay on a map using Leaflet JavaScript library, follow the steps given below −

Step 1 − Create a Map object by passing a <div> element (String or object) and map options (optional).

Step 2 − Create a Layer object by passing the URL of the desired tile.

Step 3 − Add the layer object to the map using the addLayer() method of the Map class.

Step 4 − Create a latlangs variable to hold the points to draw the polygon.

// Creating latlng object
var latlngs = [
   [17.385044, 78.486671],
   [16.506174, 80.648015],
   [17.686816, 83.218482]
];

Step 5 − Create a polygon using the L.polygon(). Pass the locations/points as variable to draw the polygon, and an option to specify the color of the polygon.

// Creating a polygon
var polygon = L.polygon(latlngs, {color: 'red'});

Step 6 − Add the polygon to the map using the addTo() method of the Polygon class.

// Adding to polygon to map
polygon.addTo(map);

Example Vector Layers

Following is the code to draw a polygon covering the cities Hyderabad, Vijayawada, and Vishakhapatnam (India).

<!DOCTYPE html>
<html>
   <head>
      <title>Leaflet Polygons</title>
      <link rel = "stylesheet" href = "http://cdn.leafletjs.com/leaflet-0.7.3/leaflet.css"/>
      <script src = "http://cdn.leafletjs.com/leaflet-0.7.3/leaflet.js"></script>
   </head>

   <body>
      <div id = "map" style = "width:900px; height:580px"></div>
      <script>
         // Creating map options
         var mapOptions = {
            center: [16.506174, 80.648015],
            zoom: 7
         }
         // Creating a map object
         var map = new L.map('map', mapOptions);

         // Creating a Layer object
         var layer = new L.TileLayer('http://{s}.tile.openstreetmap.org/{z}/{x}/{y}.png');

         // Adding layer to the map
         map.addLayer(layer);

         // Creating latlng object
         var latlngs = [
            [17.385044, 78.486671],
            [16.506174, 80.648015],
            [17.686816, 83.218482]
         ];
         // Creating a polygon
         var polygon = L.polygon(latlngs, {color: 'red'});

         // Adding to polygon to map
         polygon.addTo(map);
      </script>
   </body>

</html>

It generates the following output −

Polygon

Rectangle

To draw a Rectangle overlay on a map using Leaflet JavaScript library, follow the steps given below

Step 1 − Create a Map object by passing a <div> element (String or object) and map options (optional).

Step 2 − Create a Layer object by passing the URL of the desired tile.

Step 3 − Add the layer object to the map using the addLayer() method of the Map class.

Step 4 − Create a latlangs variable to hold the points to draw a rectangle on the map.

// Creating latlng object
var latlngs = [
   [17.342761, 78.552432],
   [16.396553, 80.727725]
];

Step 5 − Create a rectangle using the L.rectangle() function. Pass the locations/points as a variable to draw a rectangle and rectangleOptions to specify the color and weight of the rectangle.

// Creating rectOptions
var rectOptions = {color: 'Red', weight: 1}

// Creating a rectangle
var rectangle = L.rectangle(latlngs, rectOptions);

Step 6 − Add the rectangle to the map using the addTo() method of the Polygon class.

// Adding to rectangle to map
rectangle.addTo(map);

Example

Following is the code to draw a rectangle on the map using Leaflet JavaScript library.

<!DOCTYPE html>
<html>
   <head>
      <title>Leaflet Rectangle</title>
      <link rel = "stylesheet" href = "http://cdn.leafletjs.com/leaflet-0.7.3/leaflet.css"/>
      <script src = "http://cdn.leafletjs.com/leaflet-0.7.3/leaflet.js"></script>
   </head>

   <body>
      <div id = "map" style = "width:900px; height:580px"></div>
      <script>
         // Creating map options
         var mapOptions = {
            center: [16.506174, 80.648015],
            zoom: 7
         }
         var map = new L.map('map', mapOptions); // Creating a map object

         // Creating a Layer object
         var layer = new L.TileLayer('http://{s}.tile.openstreetmap.org/{z}/{x}/{y}.png');
         map.addLayer(layer); // Adding layer to the map

         // Creating latlng object
         var latlngs = [
            [17.342761, 78.552432],
            [16.396553, 80.727725]
         ];
         var rectOptions = {color: 'Red', weight: 1}   // Creating rectOptions

         // Creating a rectangle
         var rectangle = L.rectangle(latlngs, rectOptions);
         rectangle.addTo(map);   // Adding to rectangle to map
      </script>
   </body>

</html>

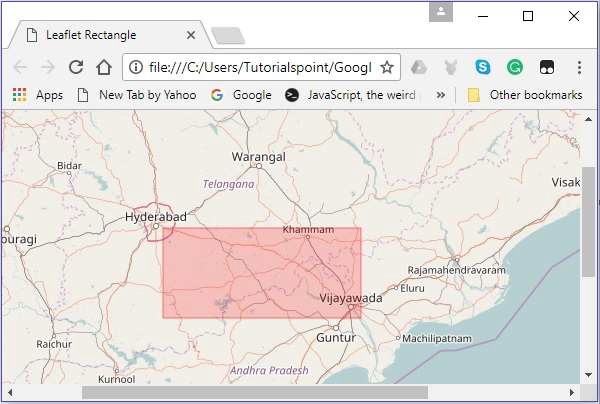

It generates the following output −

Rectangle

Circle

To draw a circle overlay on a map using Leaflet JavaScript library follow the steps given below.

Step 1 − Create a Map object by passing a <div> element (String or object) and map options (optional).

Step 2 − Create a Layer object by passing the URL of the desired tile.

Step 3 − Add the layer object to the map using the addLayer() method of the Map class.

Step 4 − Create a latlangs variable to hold the center of the circle as shown below.

// Center of the circle
var circleCenter = [17.385044, 78.486671];

Step 5 − Create a variable circleOptions to specify values to the options color, fillColor and, fillOpacity as shown below.

// Circle options
var circleOptions = {
   color: 'red',
   fillColor: '#f03',
   fillOpacity: 0
}

Step 6 − Create a circle using L.circle(). Pass the center of the circle, radius, and the circle options to this function.

// Creating a circle
var circle = L.circle(circleCenter, 50000, circleOptions);

Step 7 − Add the above-created circle to the map using the addTo() method of the Polyline class.

// Adding circle to the map
circle.addTo(map);

Example

Following is the code to draw a circle with the coordinates of the city Hyderabad as its radius.

<!DOCTYPE html>
<html>
   <head>
      <title>Leaflet Circle</title>
      <link rel = "stylesheet" href = "http://cdn.leafletjs.com/leaflet-0.7.3/leaflet.css"/>
      <script src = "http://cdn.leafletjs.com/leaflet-0.7.3/leaflet.js"></script>
   </head>

   <body>
      <div id = "map" style = "width: 900px; height: 580px"></div>
      <script>
         // Creating map options
         var mapOptions = {
            center: [17.385044, 78.486671],
            zoom: 7
         }
         var map = new L.map('map', mapOptions); // Creating a map object

         // Creating a Layer object
         var layer = new L.TileLayer('http://{s}.tile.openstreetmap.org/{z}/{x}/{y}.png');
         map.addLayer(layer);        // Adding layer to the map
         var circleCenter = [17.385044, 78.486671];     // Center of the circle

         // Circle options
         var circleOptions = {
            color: 'red',
            fillColor: '#f03',
            fillOpacity: 0
         }
         // Creating a circle
         var circle = L.circle(circleCenter, 50000, circleOptions);
         circle.addTo(map);     // Adding circle to the map
      </script>
   </body>

</html>>

It generates the following output −

Circle
